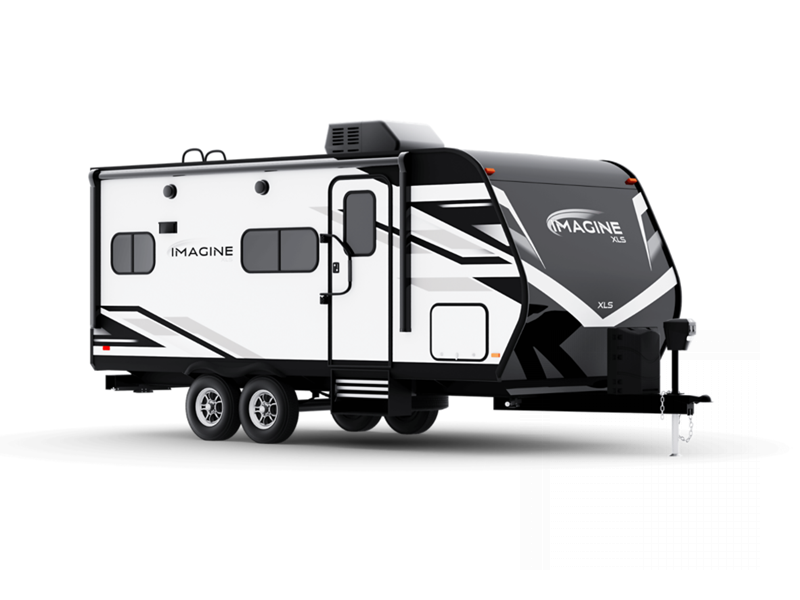

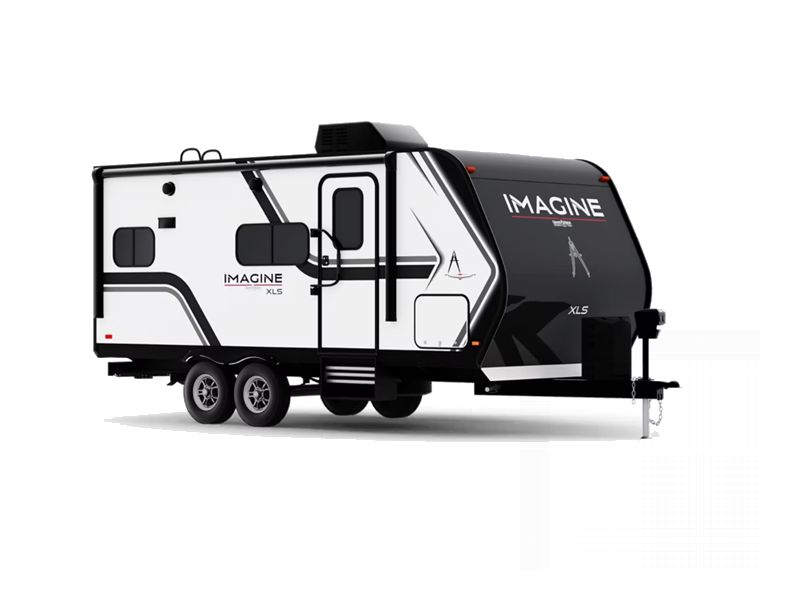

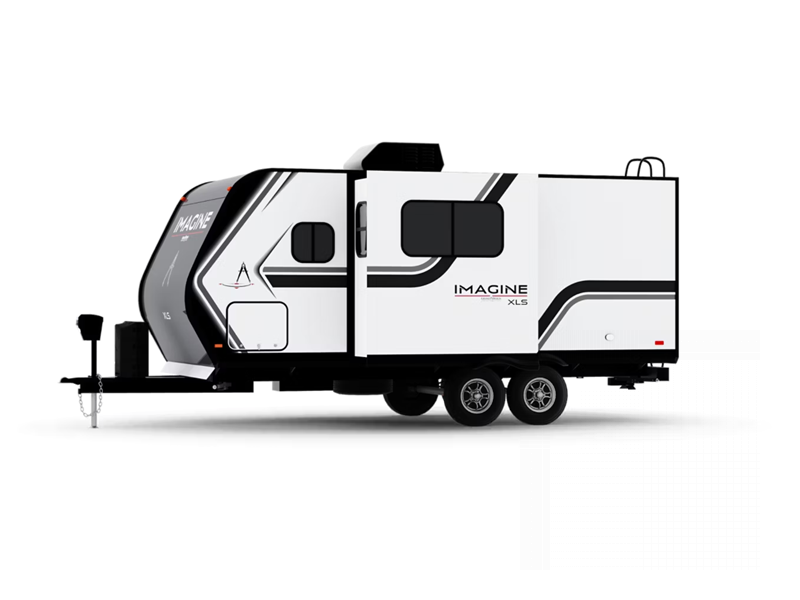

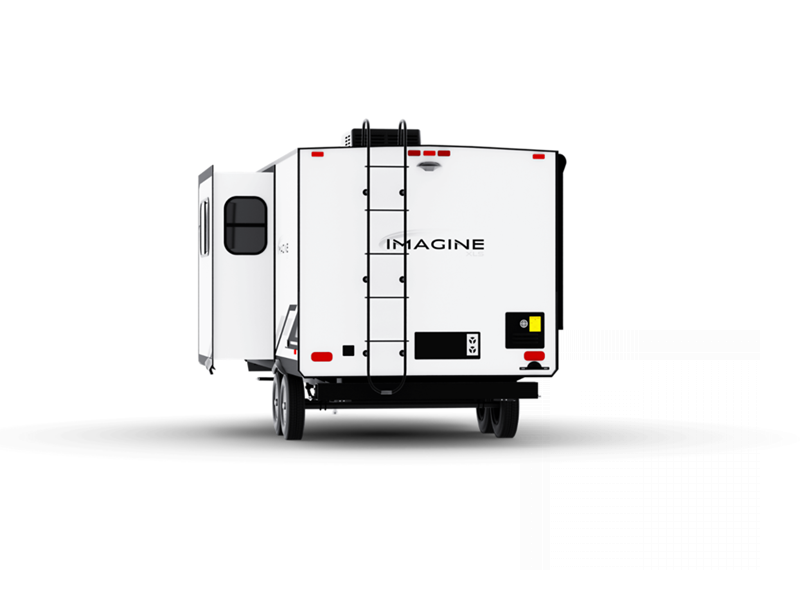

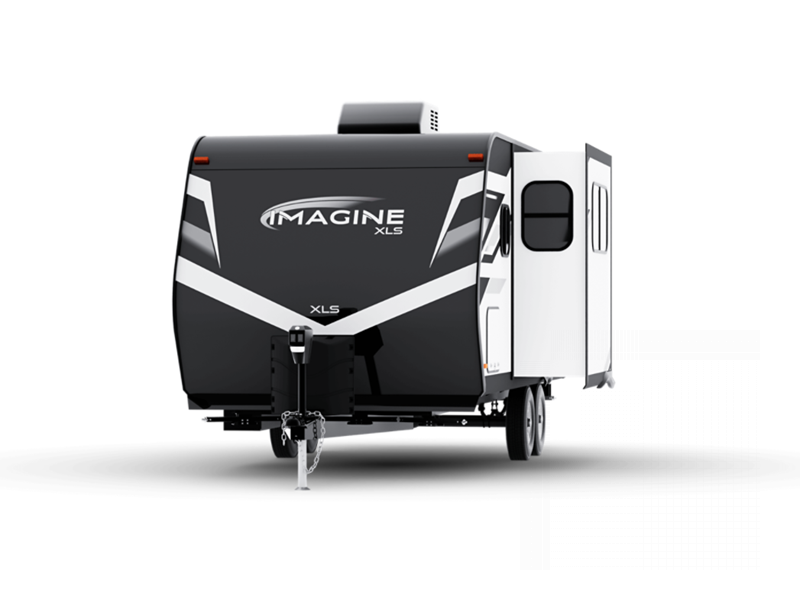

Grand Design Imagine XLS Travel Trailer RVs For Sale
The Imagine XLS travel trailers by Grand Design may be light on weight, but they're heavy on features! Since these trailers can be towed by more medium-duty trucks and SUVs, you might not have to purchase a new tow vehicle when choosing an Imagine XLS!
The gel-coated fiberglass exterior and one-piece roof membrane form the base that holds all of the many features, like the three-burner range with an oven, residential walk-in shower, high capacity furnace, and LED HDTV. The friction-hinge entry door won't fly away when you open it, and the residential countertops will let you set down dinner plates. There is a large panoramic window and LED lighting to keep your trailer feeling open, and the four packages included will provide even more features you won't want to camp without. Some of these features include a 180W solar panel, a 2" accessory hitch, and a full width pass-thru storage!
For an RV that performs beautifully and outlasts the competition, choose the Grand Design Imagine XLS travel trailer!
-
Imagine XLS 17MKE
Grand Design Imagine XLS travel trailer 17MKE highlights: Queen Murphy Bed ... more about Imagine XLS 17MKE
Specifications
Sleeps 3 Slides 1 Length 21 ft 11 in Ext Width 8 ft Ext Height 10 ft 10 in Int Height 6 ft 6 in Hitch Weight 480 lbs GVWR 6395 lbs Dry Weight 4674 lbs Fresh Water Capacity 43 gals Grey Water Capacity 45 gals Black Water Capacity 37 gals Tire Size ST205/75R14LRD Furnace BTU 25000 btu Available Beds Murphy Queen Refrigerator Type 12V Refrigerator Size 10 cu ft Cooktop Burners 3 Number of Awnings 1 LP Tank Capacity 20 lbs Water Heater Type On Demand Tankless AC BTU 15000 btu TV Info LR LED HDTV Awning Info 14' Electric w/LED Light Axle Count 2 Number of LP Tanks 2 Shower Type Walk-In Shower Electrical Service 30 amp Similar Floorplans
-
Imagine XLS 21BHE
Grand Design Imagine XLS travel trailer 21BHE highlights: Outside Griddle ... more about Imagine XLS 21BHE
Specifications
Sleeps 7 Length 24 ft 11 in Ext Width 8 ft Ext Height 10 ft 10 in Int Height 6 ft 6 in Hitch Weight 456 lbs GVWR 6395 lbs Dry Weight 4698 lbs Fresh Water Capacity 37 gals Grey Water Capacity 45 gals Black Water Capacity 37 gals Tire Size ST205/75R14LRD Furnace BTU 25000 btu Number Of Bunks 2 Available Beds Murphy Queen Refrigerator Type 12V Refrigerator Size 10 cu ft Cooktop Burners 3 Number of Awnings 1 LP Tank Capacity 20 lbs Water Heater Type On Demand Tankless AC BTU 15000 btu TV Info LR LED HDTV Awning Info 15' Electric w/LED Light Axle Count 2 Number of LP Tanks 2 Shower Type Walk-In Shower Electrical Service 30 amp Similar Floorplans
-
Imagine XLS 22BHE
Grand Design Imagine XLS travel trailer 22BHE highlights: 30" Bunks in Slide ... more about Imagine XLS 22BHE
Specifications
Sleeps 5 Slides 2 Length 25 ft 4 in Ext Width 8 ft Ext Height 10 ft 10 in Int Height 6 ft 6 in Hitch Weight 543 lbs GVWR 6995 lbs Dry Weight 5589 lbs Fresh Water Capacity 43 gals Grey Water Capacity 45 gals Black Water Capacity 37 gals Tire Size ST205/75R14LRD Furnace BTU 25000 btu Number Of Bunks 2 Available Beds Murphy Refrigerator Type 12V Refrigerator Size 10 cu ft Cooktop Burners 3 Number of Awnings 1 LP Tank Capacity 20 lbs Water Heater Type On Demand Tankless AC BTU 15000 btu TV Info LR LED HDTV Awning Info 18' Electric w/LED Light Axle Count 2 Number of LP Tanks 2 Shower Type Walk-In Shower Electrical Service 30 amp Similar Floorplans
-
Imagine XLS 22MLE
Grand Design Imagine XLS travel trailer 22MLE highlights: Queen Bed Theatre ... more about Imagine XLS 22MLE
Specifications
Sleeps 3 Slides 1 Length 26 ft 1 in Ext Width 8 ft Ext Height 10 ft 10 in Int Height 6 ft 6 in Hitch Weight 490 lbs GVWR 6995 lbs Dry Weight 5176 lbs Fresh Water Capacity 43 gals Grey Water Capacity 45 gals Black Water Capacity 37 gals Tire Size ST205/75R14LRD Furnace BTU 25000 btu Available Beds Queen Refrigerator Type 12V Refrigerator Size 10 cu ft Cooktop Burners 3 Number of Awnings 1 LP Tank Capacity 20 lbs Water Heater Type On Demand Tankless AC BTU 15000 btu TV Info LR LED HDTV Awning Info 18' Electric w/LED Light Axle Count 2 Number of LP Tanks 2 Shower Type Walk-In Shower Electrical Service 30 amp Similar Floorplans
-
Imagine XLS 22RBE
Grand Design Imagine XLS travel trailer 22RBE highlights: Private Bedroom Rear ... more about Imagine XLS 22RBE
Specifications
Sleeps 3 Slides 1 Length 25 ft 11 in Ext Width 8 ft Ext Height 10 ft 10 in Int Height 6 ft 6 in Hitch Weight 497 lbs GVWR 6995 lbs Dry Weight 5125 lbs Fresh Water Capacity 43 gals Grey Water Capacity 82 gals Black Water Capacity 37 gals Tire Size ST205/75R14LRD Furnace BTU 25000 btu Available Beds Queen Refrigerator Type 12V Refrigerator Size 10 cu ft Cooktop Burners 3 Number of Awnings 1 LP Tank Capacity 20 lbs Water Heater Type On Demand Tankless AC BTU 15000 btu TV Info LR LED HDTV Awning Info 18' Electric w/LED Light Axle Count 2 Number of LP Tanks 2 Shower Type Walk-In Shower Electrical Service 30 amp Similar Floorplans
-
Imagine XLS 23BHE
Grand Design Imagine XLS travel trailer 23BHE highlights: Double-Size Bunks ... more about Imagine XLS 23BHE
Specifications
Sleeps 7 Slides 1 Length 27 ft 11 in Ext Width 8 ft Ext Height 10 ft 10 in Int Height 6 ft 6 in Hitch Weight 504 lbs GVWR 6995 lbs Dry Weight 5325 lbs Fresh Water Capacity 43 gals Grey Water Capacity 82 gals Black Water Capacity 37 gals Tire Size ST205/75R14LRD Furnace BTU 25000 btu Number Of Bunks 2 Available Beds Queen Refrigerator Type 12V Refrigerator Size 10 cu ft Cooktop Burners 3 Number of Awnings 1 LP Tank Capacity 20 lbs Water Heater Type On Demand Tankless AC BTU 15000 btu TV Info LR 32" LED HDTV Awning Info 20' Electric w/LED Light Axle Count 2 Number of LP Tanks 2 Shower Type Walk-In Shower Electrical Service 30 amp Similar Floorplans
-
Imagine XLS 24BSE
Grand Design Imagine XLS travel trailer 24BSE highlights: Private Bedroom Dual ... more about Imagine XLS 24BSE
Specifications
Sleeps 4 Slides 2 Length 28 ft 8 in Ext Width 8 ft Ext Height 10 ft 10 in Hitch Weight 598 lbs GVWR 6995 lbs Dry Weight 5923 lbs Fresh Water Capacity 37 gals Grey Water Capacity 82 gals Black Water Capacity 37 gals Tire Size ST205/75R14LRD Furnace BTU 25000 btu Available Beds Queen Refrigerator Type 12V Refrigerator Size 10 cu ft Cooktop Burners 3 Number of Awnings 1 LP Tank Capacity 20 lbs Water Heater Type On Demand Tankless AC BTU 15000 btu TV Info LR LED HDTV Awning Info 20' Electric with LED Lights Axle Count 2 Number of LP Tanks 2 Shower Type Walk-In Shower Electrical Service 30 amp Similar Floorplans
-
Imagine XLS 25DBE
Grand Design Imagine XLS travel trailer 25DBE highlights: Double-Size Bunks ... more about Imagine XLS 25DBE
Specifications
Sleeps 8 Slides 1 Length 29 ft 9 in Ext Width 8 ft Ext Height 10 ft 10 in Int Height 6 ft 6 in Hitch Weight 631 lbs GVWR 7395 lbs Dry Weight 6198 lbs Fresh Water Capacity 37 gals Grey Water Capacity 82 gals Black Water Capacity 37 gals Tire Size ST205/75R14LRD Furnace BTU 25000 btu Number Of Bunks 2 Available Beds Queen Refrigerator Type 12V Refrigerator Size 10 cu ft Cooktop Burners 3 Number of Awnings 1 LP Tank Capacity 20 lbs Water Heater Type On Demand Tankless AC BTU 15000 btu TV Info LR LED HDTV Awning Info 22' Electric w/LED Light Axle Count 2 Number of LP Tanks 2 Shower Type Walk-In Shower Electrical Service 30 amp Similar Floorplans
-
Imagine XLS 23LDE
Grand Design Imagine XLS travel trailer 23LDE highlights: Private Bedroom Dual ... more about Imagine XLS 23LDE
Have a question about this floorplan? Contact Us
Specifications
Sleeps 3 Slides 1 Length 28 ft 5 in Ext Width 10 ft 10 in Ext Height 8 ft Int Height 6 ft 8 in Hitch Weight 524 lbs GVWR 6995 lbs Dry Weight 5597 lbs Fresh Water Capacity 43 gals Grey Water Capacity 82 gals Black Water Capacity 37 gals Tire Size ST205/75R14LRD Furnace BTU 25000 btu Available Beds Queen Refrigerator Type 12V Refrigerator Size 10 cu ft Cooktop Burners 3 Number of Awnings 1 LP Tank Capacity 20 lbs Water Heater Type On Demand Tankless AC BTU 15000 btu TV Info LR LED HDTV Awning Info 20' Electric with LED Lights Axle Count 2 Number of LP Tanks 2 Shower Type Walk-In Shower Electrical Service 30 amp Similar Floorplans
Take a Virtual Tour
Imagine XLS Features:
Standard Features
Exterior
- 80% Tint Radius Safety Glass Windows
- 20# LP Bottles (2) w/Level Gauges
- 28" Radius Entry Door
- Extra Large 2” Fresh Water Drain Valve
- Adjustable Power Awning w/ LED Lights
- Power Tongue Jack
- Aluminum Entry Steps
- Spare Tire & Carrier
- 6' Coiled Break Away Cable
- Front Rock Guard
- Tuff-Ply Pass Thru Flooring
- Sewer Hose Carrier
Construction
- Gel Coated Fiberglass Exterior
- One-Piece Roof Membrane with Limited Lifetime Warranty
- Easy Access Low Point Drain Valves
- Friction Hinge Entry Door
- Magnetic Storage Door Catches
- Laminated Aluminum Framed Rear Wall (R-7)
- Laminated Aluminum Framed Side Walls (R-7)
- Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-7)
- Laminated Aluminum Framed Main Floor (R-30)
- 5" Radius Wood Framed Roof (R-40)
- Heated & Enclosed Underbelly w/ Suspended Tanks
- Double Insulated Roof & Front Wall
- Heated & Enclosed Dump Valves
- High Density Roof Insulation w/ Attic Vent
- Moisture Barrier Floor Enclosure
Running Gear
- Tire Linc TPMS Prep
- Aluminum Rims
- ABS
Frame & Chassis
- 2" Accessory Hitch Receiver

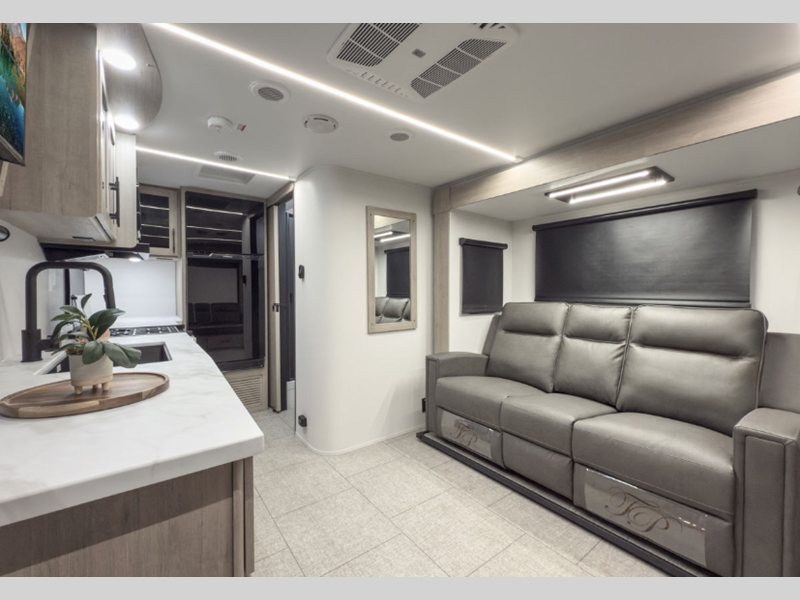

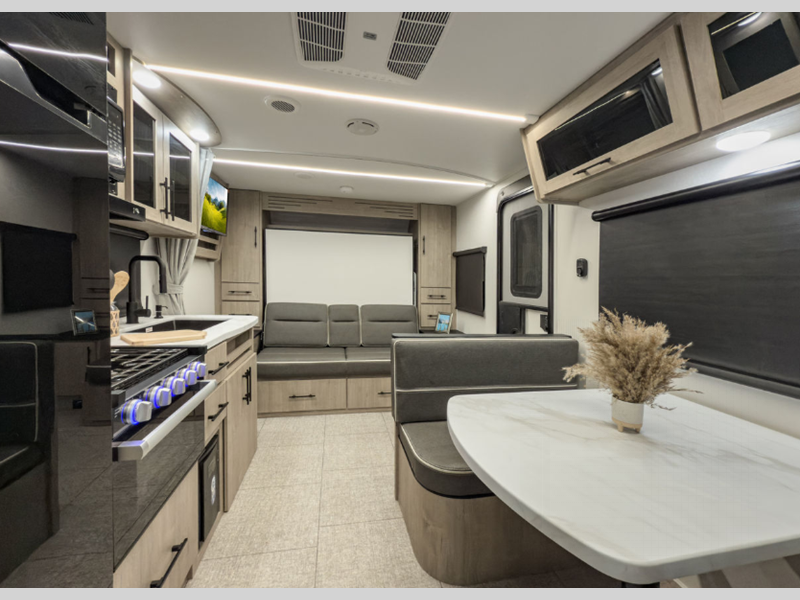

Interior
- Solid Drawer Fronts
- Glass Cabinet Door Inserts (Select Overhead Cabinets)
- Solid Core Cabinet Stiles
- Pre-Drilled and Screwed Face Frames
- Ball Bearing Full Extension Drawer Glides
- Large Panoramic Window

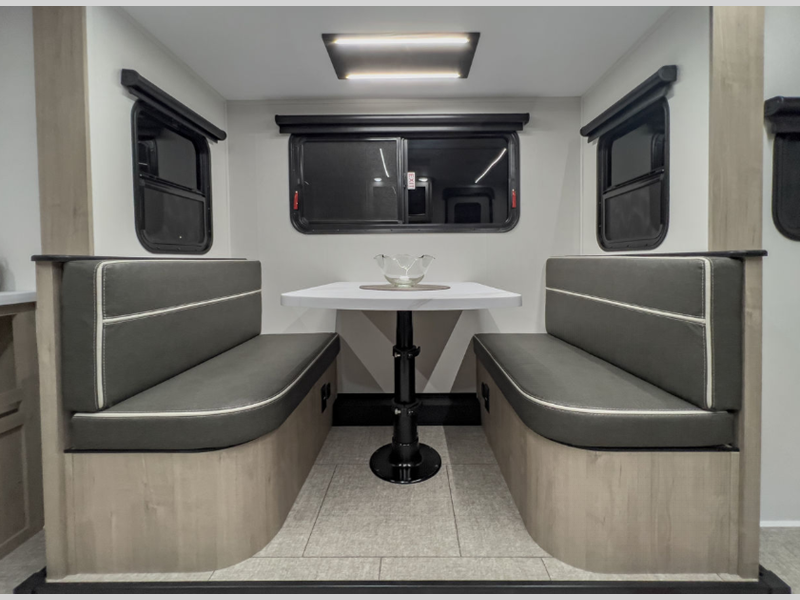

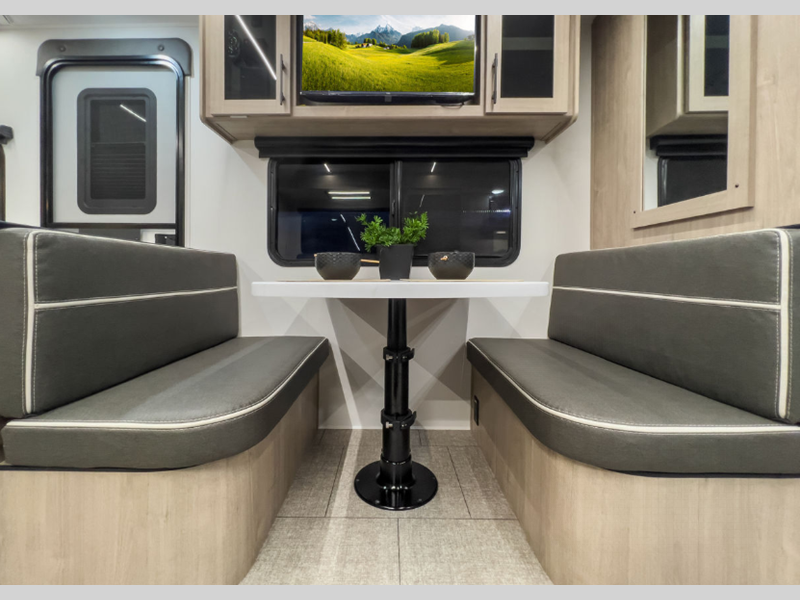

- Telescoping Dinette Table
- LED Interior Lighting
- Wireless Pop-Up Charger w/ 2 USB Outlets

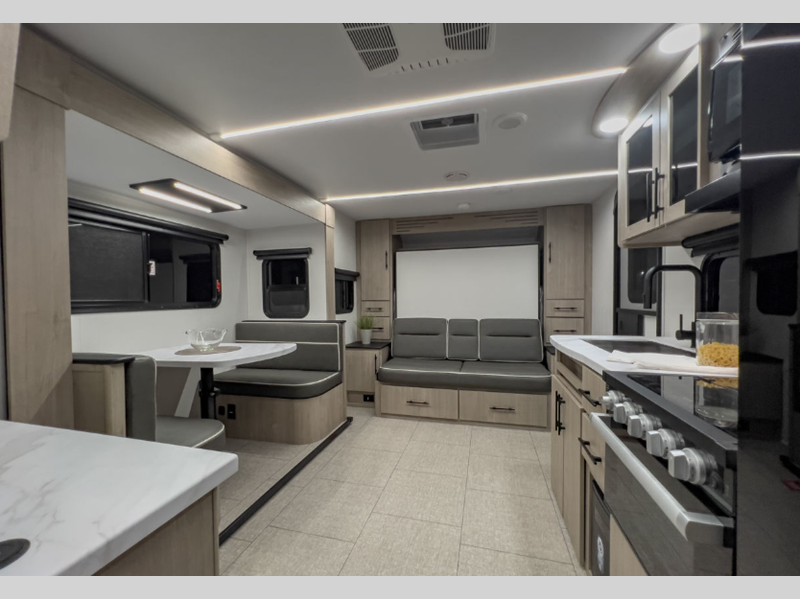

Kitchen
- Sink Cover
- Residential Countertops
- Deep Seated Stainless Steel Sink
- Residential Pulldown Sprayer Faucet
Electrical
- Battery Kill Switch (Pass Thru)
- Monitor Panel w/ One Touch Compass Connect
- 180W Roof Mounted Solar Panel
- Roof Mounted Quick Connect Plugs
- 40 Amp Charge Controller
- 30 Amp Service
- Detachable Power Cord
- Motion Sensor LED Entry Lighting
HVAC
- High Capacity Furnace
- Designated Heat to Subfloor
- Residential (Ductless) Heating System Throughout
- Ducted Main A/C
Plumbing
- High-Capacity Water Pump
- Oversized Tank Capacities
Bedroom

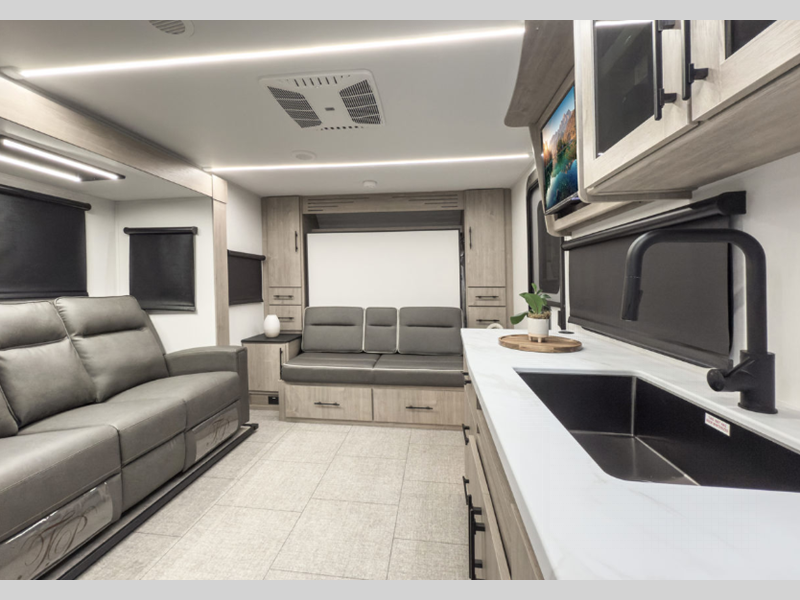

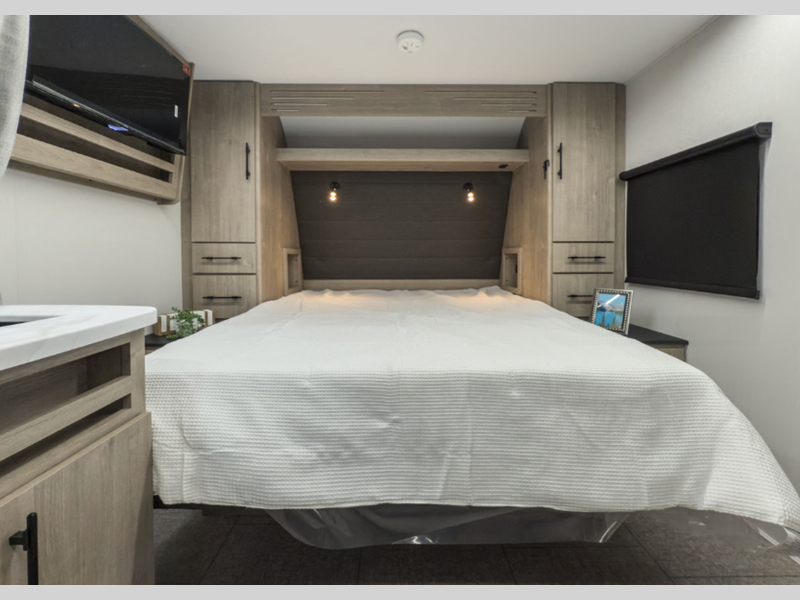

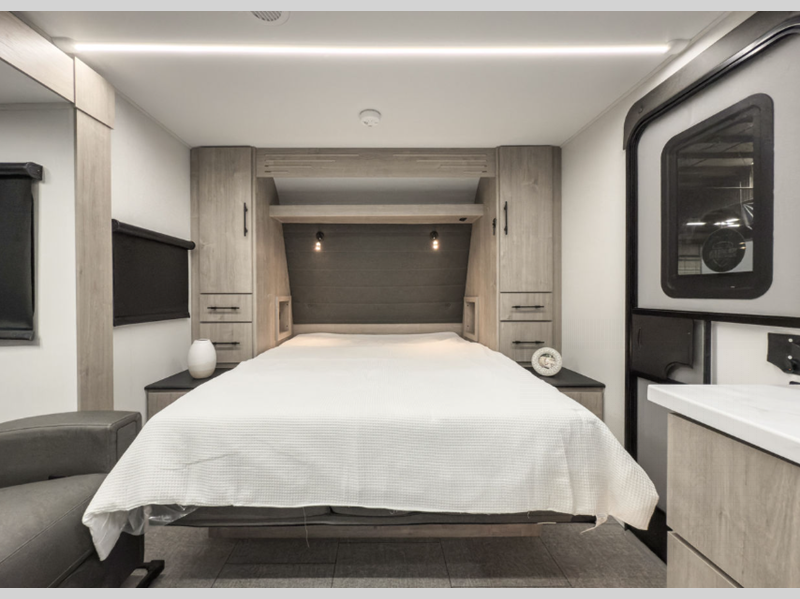

- Queen Murphy Bed w/ Storage Drawers (17MKE, 22BHE)
- Residential Bedspread
- Master Suite with Queen Bed (22MLE, 22RBE, 23LDE, 24BSE, 24SDE, 25DBE)
- Built-in Wardrobe Cubby Storage w/USB-C Charging Station and 110V Outlet

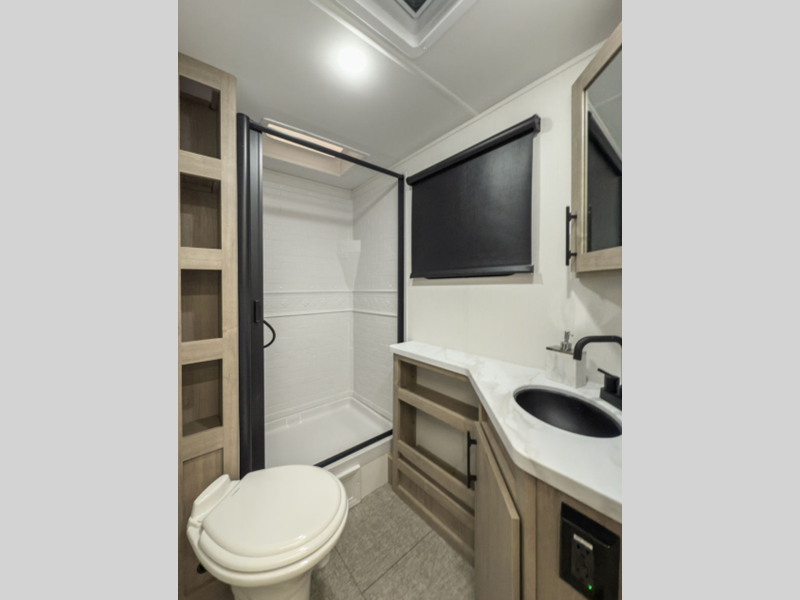

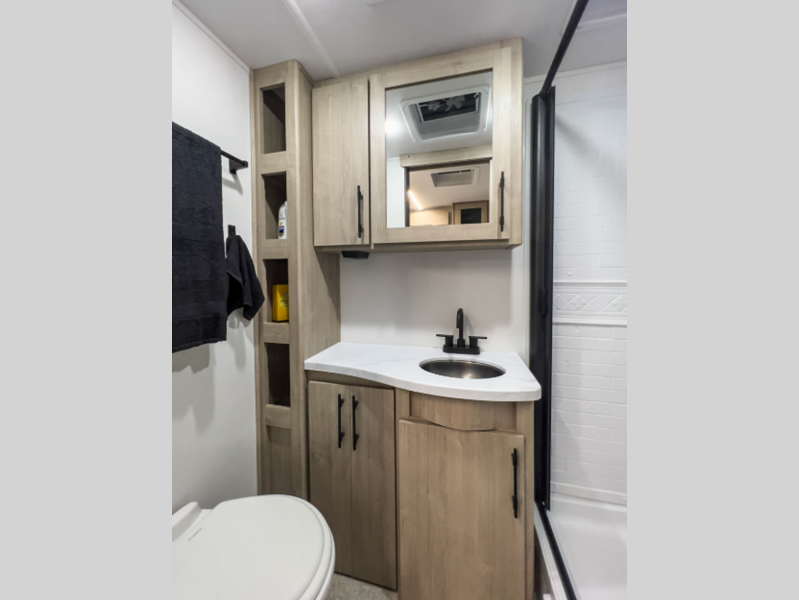

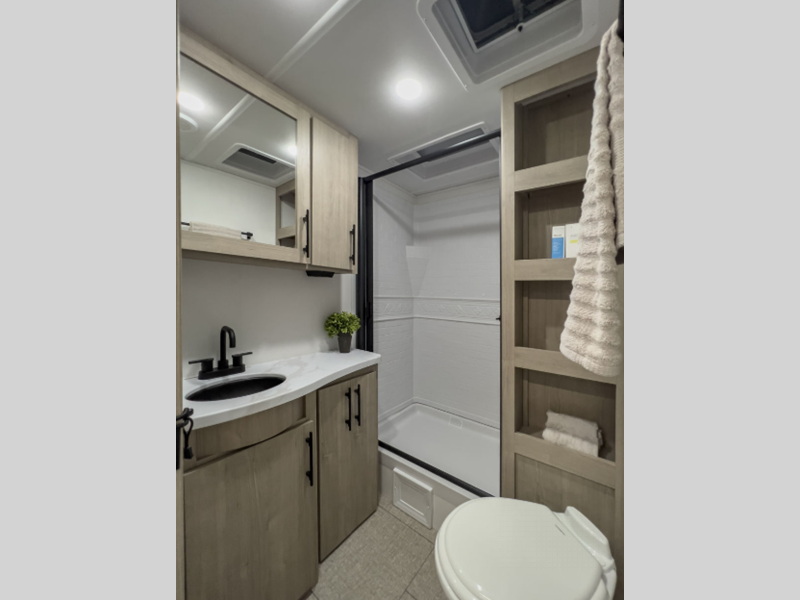

Bathroom

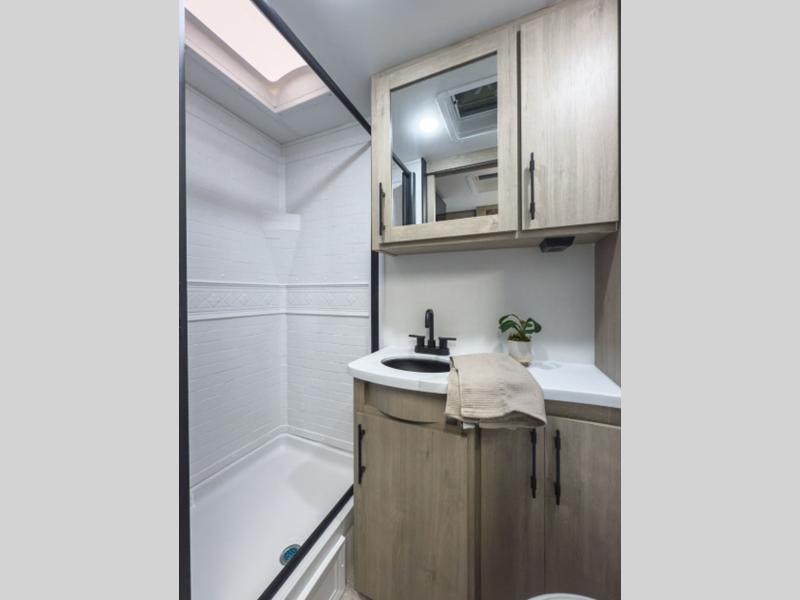

- Residential Walk-In Shower
- Skylight Over Shower
- Power Vent Fan
- Medicine Cabinet with Mirror
Appliance
- Microwave
- 3-Burner Range with Oven
- 12V 10 Cu. Ft. Refrigerator
Electronics
- Backup Camera Prep
- TV and Cable Prep
- High Definition LED TV
- Exterior Cable Hookup
Peace of Mind Package (Mandatory)
- Aluminum Entry Steps
- Deep Seated Stainless Steel Sink
- Residential Pull-Down Sprayer Faucet
- Residential Cabinetry
- Universal Docking Station
- On Demand Tankless Water Heater
- Black Tank Flush
- Aluminum Rims
- Spare Tire and Carrier
- Front Rock Guard
- Premium Window Treatments
- 6' Coiled Break Away Cable
- 2" Accessory Hitch
- Sewer Hose Carrier
- Tuff-Ply Pass Through Flooring
- Dual LLP Tank Monitors
Ultimate Power Package (Mandatory)
- Adjustable Power Awning w/ LED Lights
- LED Interior Lighting
- 30 AMP Service
- High Definition LED Television
- LED Motion Sensor Entry Lighting
- Detachable Power Cord
- Ducted Main AC
- Power Tongue Jack
- Compass Connect
- Tire Linc TPMS Prep
- Exterior Cable Hookup
- Full Width Pass-Thru Storage LED Strip Light w/Dual Power Pressure Switches
- Wireless Pop-Up Charger w/Dual USB Ports
Four-Season Protection Package (Mandatory)
- High Capacity Furnace
- Heated and Enclosed Underbelly with Suspended Tanks
- Designated Heat Duct to Subfloor
- High Density Roof Insulation with Attic Vent
- Moisture Barrier Floor Enclosure
- Residential Heating System Throughout (Ductless)
- Double Insulated Roof and Front Cap (R-40)
- Heated and Enclosed Dump Valves
XLS Solar Package (Mandatory)
- 180W Roof Mounted Solar Panel
- Roof Mounted Quick Connect Plugs
- 40 Amp Charge Controller
- 12V 10 CU. FT. Refrigerator
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
